BeoPlay V1 - Is a TV with flexible stand and mounting options, premium picture and sound quality and the iconic remote to control all your devices. BeoPlay V1 is optimised to display content from several devices, and even has room so you can hide away your Apple TV inside the connection panel on the back.
Beoplay V1-40
2014
Specifications
DESIGN
DESIGNER
Anders Hermansen
DIMENSIONS (W x H x D)/WEIGHT
95.3 x 70.9 x 5.2 cm
26 kg
37.5" x 27.9" x 2"
57.3 lbs
COLOUR(S)
Cabinet : Black, white
Front cloth : Dark grey, green, red, silver, yellow
ENVIROMENTAL
POWER CONSUMPTION
Typical (IEC62087:2.ed.): 86W/Standby 0.4W
PEAK LUMINANCE RATIO
65%
ENERGY EFFICIENCY CLASS (EU)
B
MAINS VOLTAGE RANGE
100-240 VAC, 47-63 Hz
OPERATING CONDITIONS
10-40° C, 50-104° F
Humidity: 30-70%
TV PLATFORM
CHASSIS
Video Engine 1.0
THEFT PROTECTION FEATURE
PIN code
PICTURE FORMATS
Automatic format handling incl. Black Bar Detection
Automatic modes: AUTO, AUTO WIDE
Manual override modes: FIXED FORMAT A, B, C* and D*(*Incl. vertical scroll)
HDMI INPUT FORMATS
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
640x480, 800x600, 1027x768
FURTHER INFO ON PICTURE INPUT FORMATS
See PDF
DIGITAL SURROUND SOUND MODULE
Standard built-in
SOUND INPUT FORMATS
PCM, multichannel PCM
DIGITAL SOUND DECODING CAPABILITIES
Multichannel PCM, Dolby Digital, Dolby Digital Plus 5.1, DTS2.0, HE-AAC v1 and v2, LC-AAC, mp3, WMA, WMA lossless, FLAC
Up- & down-mixing: B&O True Image, downmix, 1:1
MEDIA PLAYER
MEDIA
USB, DLNA
MEDIA PLAYER DECODING CAPABILITIES
See PDF
MEDIA CONTAINERS
MKV, MP4, ASF,AVI, MP2TS, MP2PS, MOV
VIDEO CODECS
MP1V, MP2V, MP4-ASP, H264, MJPEG,VC-1, WMV9, XviD
PHOTO FORMATS
jpg, .bmp, .tiff, png, .gif
MEDIA PLAYER
Available
DLNA
Available
ONLINE SW UPDATE
Available
DISPLAY
SCREEN TYPE
40" 16:9 TFT LCD
BACKLIGHT TYPE
Edge-type LED
RESOLUTION
1920 x 1080 pixels (full HD)
REFRESH RATE
100Hz/120Hz
LUMINANCE OF WHITE (CENTRE OF SCREEN)
Typical 400 cd/m2
CONTRAST RATIO (CENTRE OF SCREEN)
Typical 5000:1
RESPONSE TIME (GREY TO GREY)
Typical 6 msec
PICTURE OPTIMISATION
VisionClear
ROOM ADAPTATION
Automatic picture control
COLOUR CALIBRATION
10-point display calibration
CONTRAST ENHANCEMENT
Adaptive contrast algorithm
Global backlight dimming
MOTION PICTURE IMPROVEMENT
Adaptive film judder compensation
ANALOGUE TUNER
VIDEO TYPE / FORMAT
According to type and setup:
B/G/L/L'/I/D/K/M
FREQUENCY RANGE
45-863 MHz
ANALOGUE STEREO DECODING CAPABILITIES
A2 + Nicam
AERIAL INPUT CONNECTION(S)
1 x F-connector for analogue and T2
1 x F-connector for S2 (optional)
DIGITAL TUNER T2/C/S2
DTMB
Optional
VIDEO TYPE / FORMAT
DVB-T/T2, DVB-C, MPEG2/4 HD
MPEG2: MP@ML, MP@HL
H264: MPEG4 AVC, main and high profile level 4
China type : DTMB + DVB-T2/C
AUDIO TYPE / FORMAT
MPEG1: 2-channel audio decoder, layer 1&2
MPEG2: 2-channel audio decoder, layer 2 AAC, AAC+ Dolby Digital, Dolby Digital Plus
FREQUENCY, RANGE AND IF BANDWIDTH
DVB-T2:
104 MHz to 862 MHz (band 3, 4, 5)
IF Bandwidth 6, 7, 8 MHz selectable
Auto tuning: 174 MHz to 230 MHz and 470 MHz to 858 MHz
DVB-C:
48 MHz to 862 MHZ (band 3, 4, 5)
IF bandwidth 6, 7, 8 MHz selectable
Auto tuning 110 MHz to 858 MHz
DVB-S2:
10700 MHz to 12750 MHz and 950 MHz to 2150 MHz
AERIAL INPUTS CONNECTION
1 x F-connector DVB-T2/DVB-C/Analogue
Active antenna supply 5V@50mA
1 x F-connector DVB-S2 (optional)
COFDM (ORTOGONAL FREQ. DIVISION MODLATION) SPECTRUM
2K & 8K, hierarchical and non-hierarchical
MODULATION
DVB-T2:
QPSK, 16QAM, 64QAM
DVB-C:
QPSK, 16QAM, 64QAM, 256QAM
DVB-S2:
8PSK, QPSK
CODE RATE
DVB-T2: 1/2, 2/3, 3/4, 5/6, 7/8, 3/5, 4/5
GUARD INTERVAL
DVB-T2: 1/32, 1/16, 1/8, 1/4, 1/128, 19/256, 19/128
SYMBOL RATE
DVB-T2: 2 - 45 msymb/sec
DVB-C: 4 - 7 msymb/sec
DVB-S2: 1 - 45 msymb/sec
ODU CONTROL
DiSEqC level 1.1 (digital satellite equipment control)
DC for switching between H/V polarizations:
13.5 V +/- 5% max 450 mA
18.5 V +/- 5% max 450 mA
Tone Control for low or high band selection:
22 KHz/0.65 Vpp +/- 0.25 V duty cycle 50%+/- 10%
Cable length compensation selectable +1 V LNB supply boost
COMMON INTERFACE AND SMART CARD SLOTS
Common interface according to EN50221
CI and CI+
2 x PCMCIA (common interface only)
All CA Systems available as common interface is supported
CA power supply: Max 5V/500mA
SOUND
LOUDSPEAKER
Integrated stereo speaker
(centre speaker if surround sound setup)
POWER PER AMPLIFIER
3 x 32 W
EFFECTIVE FREQUENCY RANGE
85 Hz to 20.000 Hz
CABINET PRINCIPLE
Closed box
MIDRANGE
50 mm/2" full range type
CABINET VOLUME
2 x 0.15 litre for full tone speakers
1 x 1.7 litre for subwoofer
BASS EQUALISER
Adaptive Bass Linearization (ABL)
FEATURES
BEOLINK
Network Link
NETWORK LINK OPTIONS
V.OPT 1, 2 and 4
AUDIO DISTRIBUTION
Requires BeoLink Converter NL/ML to Master Link products
PERIPHERAL UNIT CONTROLLER
Integrated Peripheral Unit Controller (PUC) for controlling a set-top box
Controlling 4 units
HBBtv
Available
Bang & Olufsen Smart TV
Available
SPLIT SCREEN
Picture and Picture
Picture and Text
TELETEXT
Teletext level 1.5
4000 pages
9 memory pages per channel
SPEAKER MODES
9 User-configurable Speaker Groups
9 Editable Sound Modes
WLAN
IEEE 802.11 a/n/b/g
2.4 GHz
5 GHz
Controllable via iPad
Requires iPad
Controllable via Android tablet
Requires Android tablet
Support for HDMI Matrix
Yes, 4x4, 4x8, 8x8, 16x16
MENU LANGUAGE(S)
Chinese Simplified, Chinese Traditional, Danish, Dutch, English, French, Finnish, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Romanian, Russian, Spanish, Swedish
REMOTE CONTROL
BeoRemote One, Beo4, BeoRemote 2.0 for iPad, iPhone and Android, Beo6
Connections
CONNECTIONS
USB
1 x USB connector type a
%V DC/500 mA
USB HDD, USB key
Media player: Picture, music, movies
Software: Software update, Peripheral Unit
Controller PUC table download
Supported formats: FAT, FAT16, FAT32, NTFS, EXT3
LAN
1 x Ethernet RJ45 10/100 Mbit/s
Functions:
Media player allowing playback of picture, music and movies from NAS via UPnP, software update, PUC table download allowing you to control a set-top box with the Bang & Olufsen remote control
WLAN
1 x 3-port QSL
Functions:
Media player allowing playback of picture, music and movies from NAS via UPnP, software update, PUC table download allowing you to control a set-top box with the Bang & Olufsen remote control
IR CONTROL OUTPUTS (PUC)
2 x RJ45 (CTRL 2/CTRL 3) 1 IR blaster in each
ANALOGUE VIDEO CONNECTIONS
1 x Mini DIN
AV input (RGB FB or CVBS and one way AVL)
PAL, SECAM, NTSC
PC INPUT
HDMI
DIGITAL VIDEO CONNECTIONS
5 x HDMI free configurable
DIGITAL SOUND CONNECTIONS
1 x RCA SPDIF, free configurable
LOUDSPEAKER OUTPUTS
3 x RJ45 (PL1/PL2/PL3) Power Link, allowing up to 6 Bang & Olufsen speakers
BtB
1 x RJ45 (CTRL 1) for BtB only
6 Months Parts
3 Months Labour
Very Good Condition

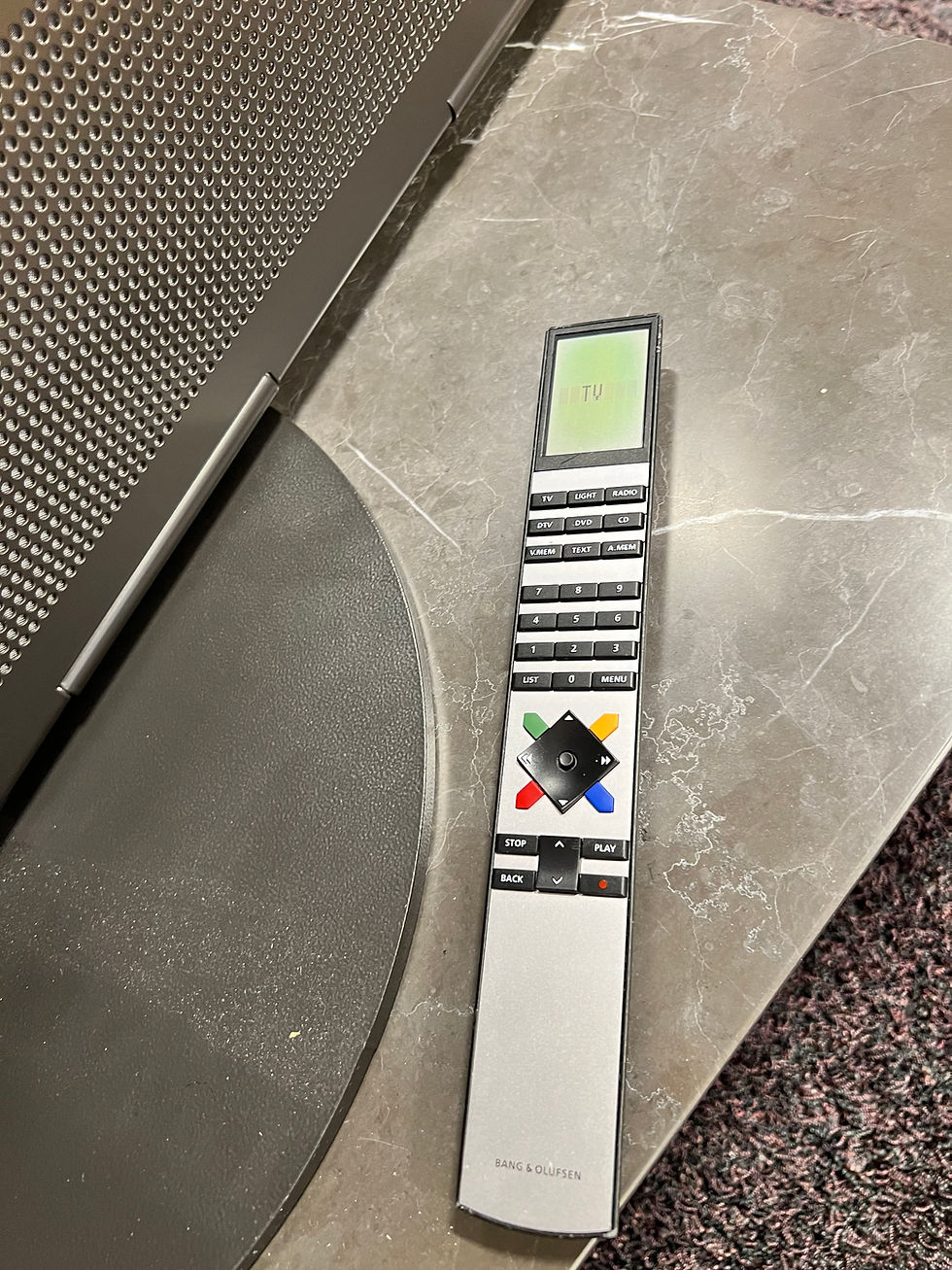

Mains lead and Beo 4 Remote
Collection Only - No Box available
